20kW 3-Phase Hybrid Inverter

20kW 3-Phase Hybrid Inverter

The new Sunsynk 20kW low-voltage three-phase hybrid inverter, stands out as the ideal choice for a residential energy solution, due to its efficiency, reliability, and safety.

Whether for off-grid or grid-tied applications, this inverter meets diverse user needs and supports a sustainable future. Through a Superior Input Current together with Efficient and Flexible Battery Configuration, this latest Hybrid inverter maintains a High Power Output ability.


The user friendly design incorporates Advanced SiC MOSFET Technology, whilst allowing enhanced charge and discharge capabilities to make full use of the system’s 48v battery configuration. The unit has an IP65 protection rating, making it water and dust resistant and suitable for various harsh and complex environments. It includes dual-level lightning protection for AC and DC circuits, ensuring extreme safety.

Standard Features

100% unbalanced output, each phase; Max. output up to 50% rated power

AC couple to retrofit existing solar system or the ability to add energy from a Diesel Generator (AUX/GEN Port)

Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 350A

48V low voltage battery, transformer isolation design

6 time periods for battery charging/discharging

Standard Features

  • Length 26.6cm
  • Width 45.6cm
  • Height 75cm
  • Weight 38kg

Product Video

Product Pictures

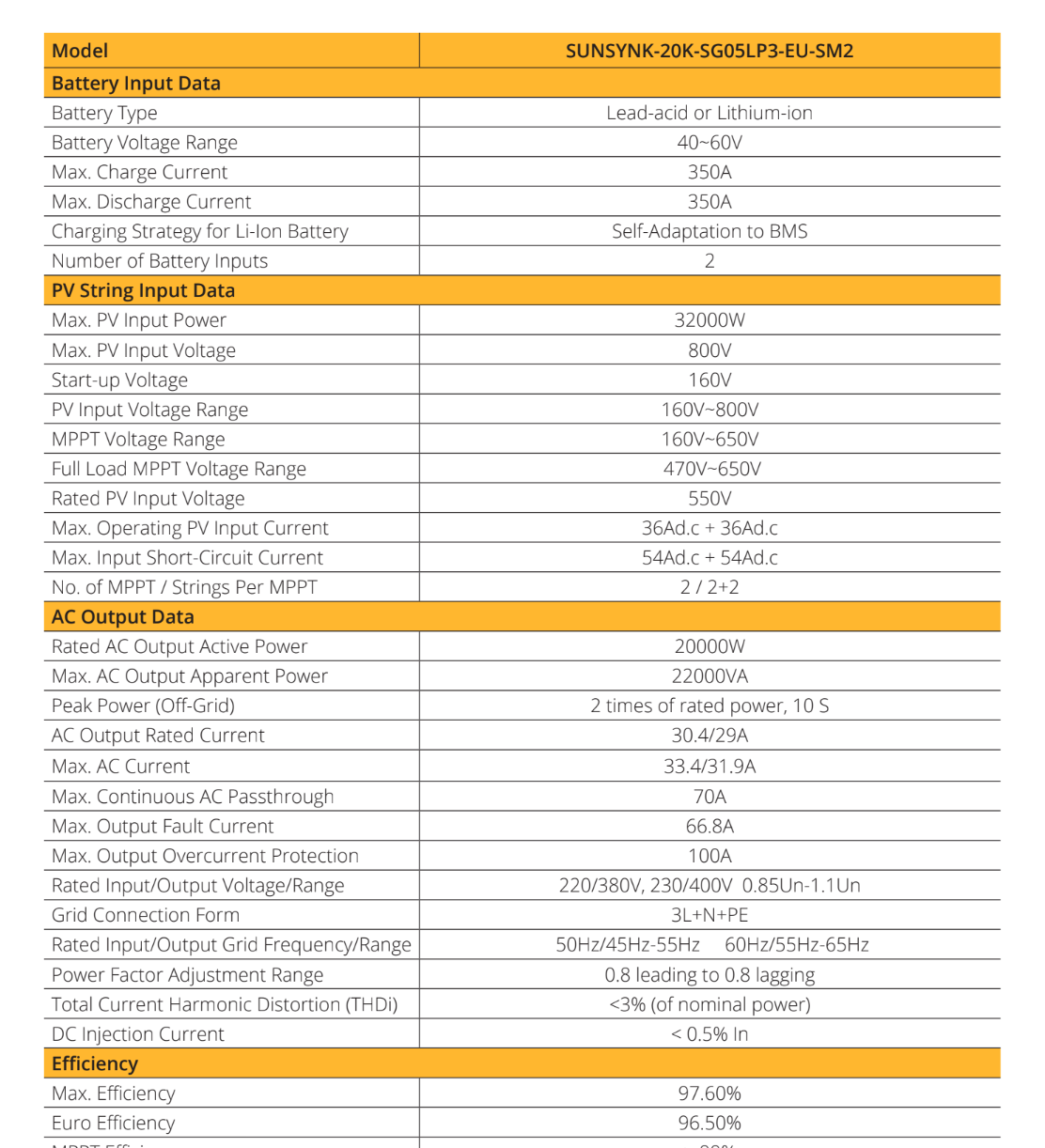

Product Datasheet
